Price Oracle Middleware

Purpose and scope

The Price Oracle Middleware system provides standardized asset valuation and conversion for the PlasmaVault ecosystem. It is centered around the PriceOracleMiddlewareWithRoles contract, which acts as a centralized price hub, and the PriceOracleMiddlewareManager, which provides a vault-specific interface for price queries and validation.

The system is responsible for:

• Providing asset prices in a unified quote currency (USD) with 18 decimals contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol42-46 (opens in new tab)
• Managing custom price feed sources (e.g., Pendle PT, Curve, ERC4626) contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol125-135 (opens in new tab)
• Falling back to the Chainlink Feed Registry when custom sources are not defined contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol19-21 (opens in new tab)
• Implementing price change validation to protect vaults from extreme volatility or oracle manipulation contracts/managers/price/PriceOracleMiddlewareManagerLib.sol43-48 (opens in new tab)

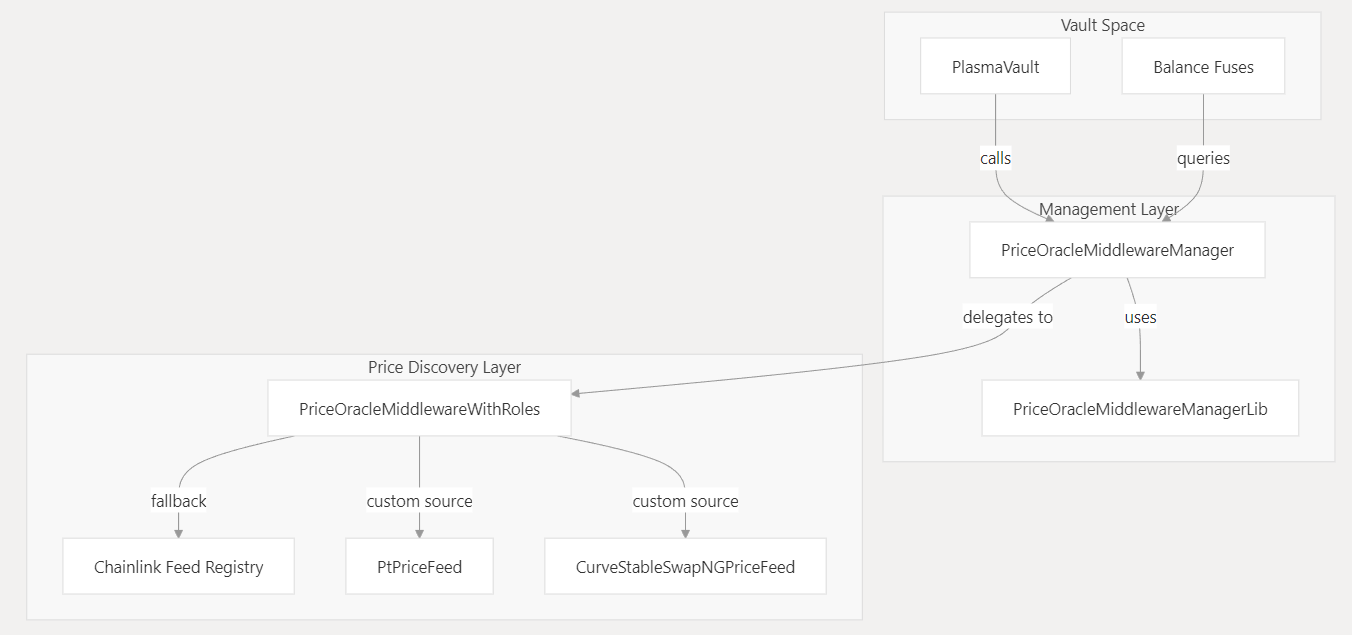

System architecture

The architecture separates global price discovery from vault-specific price management and validation.

Logic flow and code entities

Architecture description:

1. PlasmaVault and its Balance Fuses interact with the PriceOracleMiddlewareManager assigned to the vault contracts/vaults/PlasmaVault.sol75 (opens in new tab)
2. The PriceOracleMiddlewareManager handles vault-specific configuration, such as custom asset sources and price validation logic stored via PriceOracleMiddlewareManagerLib contracts/managers/price/PriceOracleMiddlewareManagerLib.sol64-75 (opens in new tab)
3. PriceOracleMiddlewareWithRoles serves as the protocol-wide price aggregator, managing specialized feeds like PtPriceFeed for Pendle tokens contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol140-150 (opens in new tab)

Core components

1. PriceOracleMiddlewareWithRoles

This contract provides the "Source of Truth" for asset prices. It normalizes all outputs to 18 decimals (WAD) contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol76-77 (opens in new tab)

• Quote Currency: Hardcoded to the Chainlink USD address 0x...0348 contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol42 (opens in new tab)
• Custom Sources: Allows administrators to map specific assets to custom IPriceFeed implementations contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol112-114 (opens in new tab)
• Pendle Integration: Features specialized logic to deploy and manage PtPriceFeed instances for Pendle Principal Tokens contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol140-160 (opens in new tab)

2. PriceOracleMiddlewareManager

A per-vault manager that wraps the global middleware with validation and vault-specific overrides.

• getAssetPrice: The primary entry point. It checks for a vault-specific source in PriceOracleMiddlewareManagerLib before falling back to the global middleware contracts/managers/price/PriceOracleMiddlewareManager.sol103-118 (opens in new tab)
• Validation: Implements validatePriceChange which compares the current price against a lastValidatedPrice. If the delta exceeds maxPriceDelta, the transaction reverts contracts/managers/price/PriceOracleMiddlewareManagerLib.sol43-48 (opens in new tab)

Specialized price feeds

The system supports various specialized feeds to handle complex DeFi assets.

Pendle PT Price Feed (PtPriceFeed)

Calculates the price of Pendle Principal Tokens using Pendle's TWAP oracle and the price of the underlying asset from the middleware contracts/price_oracle/price_feed/PtPriceFeed.sol12-18 (opens in new tab)

Feed factory pattern

Factories like PtPriceFeedFactory and CurveStableSwapNGPriceFeedFactory are used to deploy standardized feed instances that the middleware can then consume contracts/factory/price_feed/PtPriceFeedFactory.sol6-10 (opens in new tab)

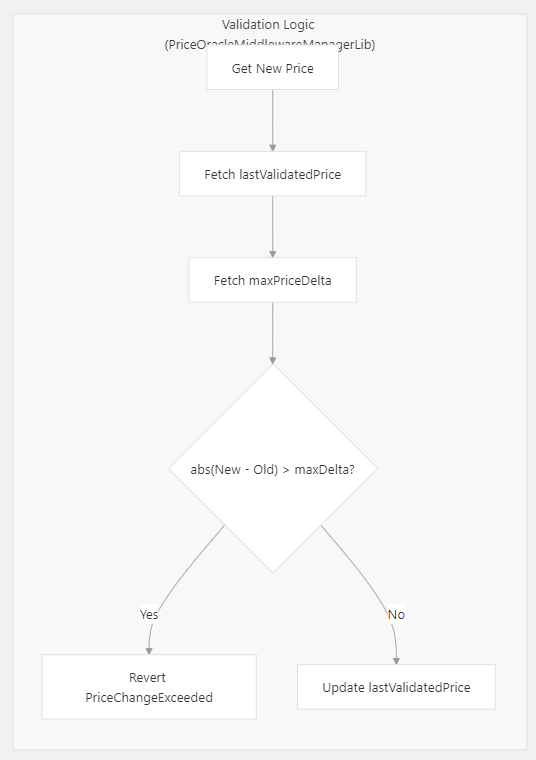

Price validation mechanism

The validation system prevents the vault from transacting at "stale" or manipulated prices by enforcing a maximum allowed deviation.

• Configuration: Managed via updatePriceValidation which sets the maxPriceDelta for an asset contracts/managers/price/PriceOracleMiddlewareManagerLib.sol139-152 (opens in new tab)
• Execution: Usually triggered via a Pre-Hook (ValidateAllAssetsPricesPreHook) before vault actions like execute or deposit contracts/handlers/pre_hooks/pre_hooks/ValidateAllAssetsPricesPreHook.sol18-23 (opens in new tab)

Access control and roles

The system utilizes a hierarchy of roles defined in Roles.sol to secure configuration.

Data normalization

All prices returned by the middleware system are normalized to 18 decimals (WAD) to ensure consistency across the IPOR Fusion protocol.

• Normalization Formula: If a feed has $N$ decimals, the price is scaled by $10^{(18-N)}$ contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol76-77 (opens in new tab)
• Batch Processing: getAssetsPrices allows fetching multiple asset prices in a single call, returning arrays of prices all in 18-decimal format contracts/price_oracle/PriceOracleMiddlewareWithRoles.sol92-107 (opens in new tab)
